AEROGHIAIA INTEGRALE
$549.00 CAD

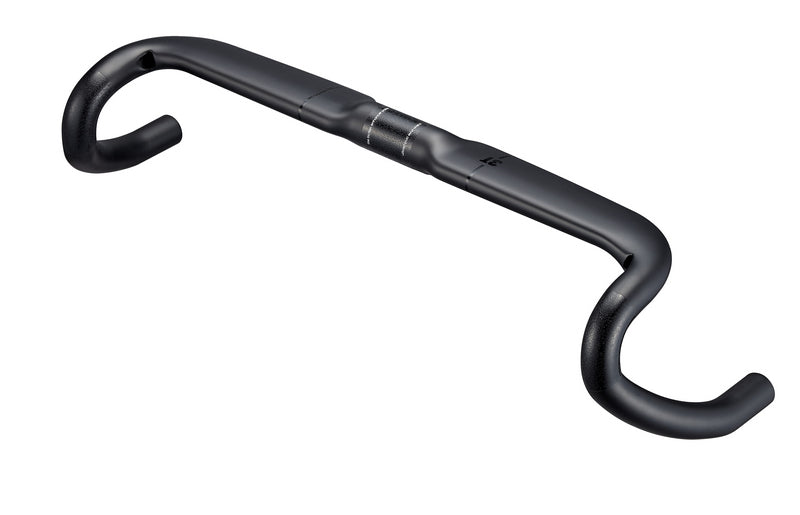

Designed for gravel racing and fast all-road riding, the Aeroghiaia combines speed, control and comfort.
The speed comes from our aero profile, finally giving you road bike speed on all possible terrain. Control is enhanced thanks to the flared drops. But the key benefit of the Aeroghiaia is comfort.
The aero wing shape provides a large surface for your hands to spread the load, while the multi-angle drops keep the brake hoods vertical (instead of weirdly-angled on regular flares) for comfort and position the flare below the hoods.
Compatible with both 3T INTEGRALE system and “standard” external cable routed frames.
Shipped in 48-72 hours
Specifications are subject to change without notice
Additional info
Free shipping on orders over 150$
TAX included for US and Canada orders
TAX and Import Duties not included for orders outside US and Canada
More About Payments
More about shipments
To assure you the best possible delivery service, 3T operates only with top international couriers. All of our deliveries are managed by the DHL group. Deliveries are around 5 working days from time of shipment, except for the “Custom” category: for these products, considering the unique and handcrafted finishing process, deliveries are around 20 days from receipt of the order.
More about: Shipping and Returns
More about returns and refunds
DESIGN IN THE DETAILS
MULTI FLARE
The Aeroghiaia combines our award-winning Superergo grip with a multi-angled flare. The top section of the drop is standard so the hoods are angled as intended, the lower section has an extreme flare for optimal control..
BAR WIDTHS
The new design is available in 3 widths. The hood-to-hood widths are in line with standard road bars while the drop-to-drop widths are much wider thanks to the flare.
CENTER WING
The wing’s cross section is aerodynamic yet comfortable, in particular when you rest your thumb on top of the bars parallel to your index finger.

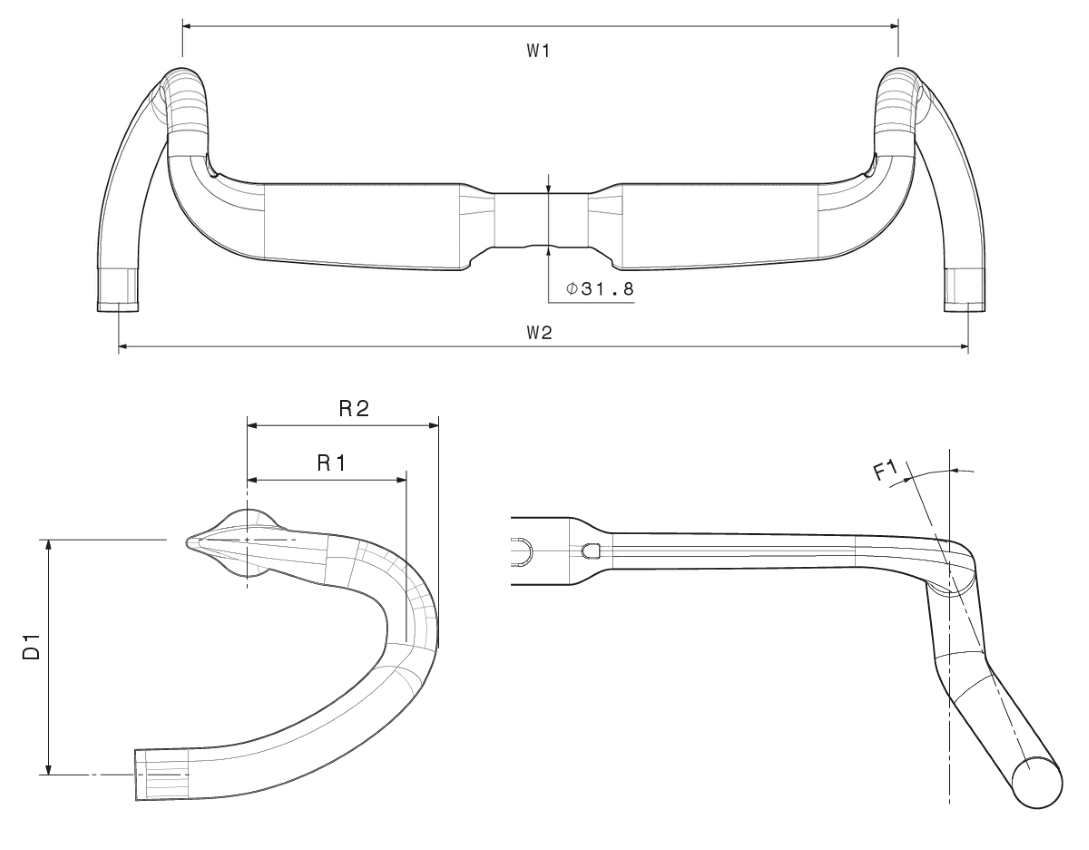

| Size | 40 | 42 | 44 |
|---|---|---|---|
| W1 Hood-to-hood (mm) | 400 | 420 | 440 |
| W2 Drop-to-drop (mm) | 478 | 499 | 519 |
| R1 Reach (mm) | 78 | 78 | 78 |
| R2 Reach (mm) | 89 | 89 | 89 |
| D1 Drop (mm) | 110 | 110 | 110 |
| F1 Drop flare (degrees) | multi-angle | multi-angle | multi-angle |
| Weight LTD (+/-4%) (g) | 229 | 232 | 238 |
SPECIFICATIONS
| Material | Unidirectional carbon - ultralight layup |
| Cable routing | Internal cable routing channels inside the bar |
| Integrale compatibility | Yes |
| Clamp diameter | 31.8mm |
| Stem Torque | 6Nm max. 4 bolt stem/ 8Nm max. 2 bolt stem |
| Shift/brake lever torque | 8Nm maximum |
| Clip-ons | Not compatible (this would require a longer round center section and increase aero drag) |
| Di2 compatibility | Fully compatible, including with Di2 bar plug Junction A |
| Finish | Stealth Black |
