RACEMAX 2 ITALIA

FRAMESET
$5,154.00 USD

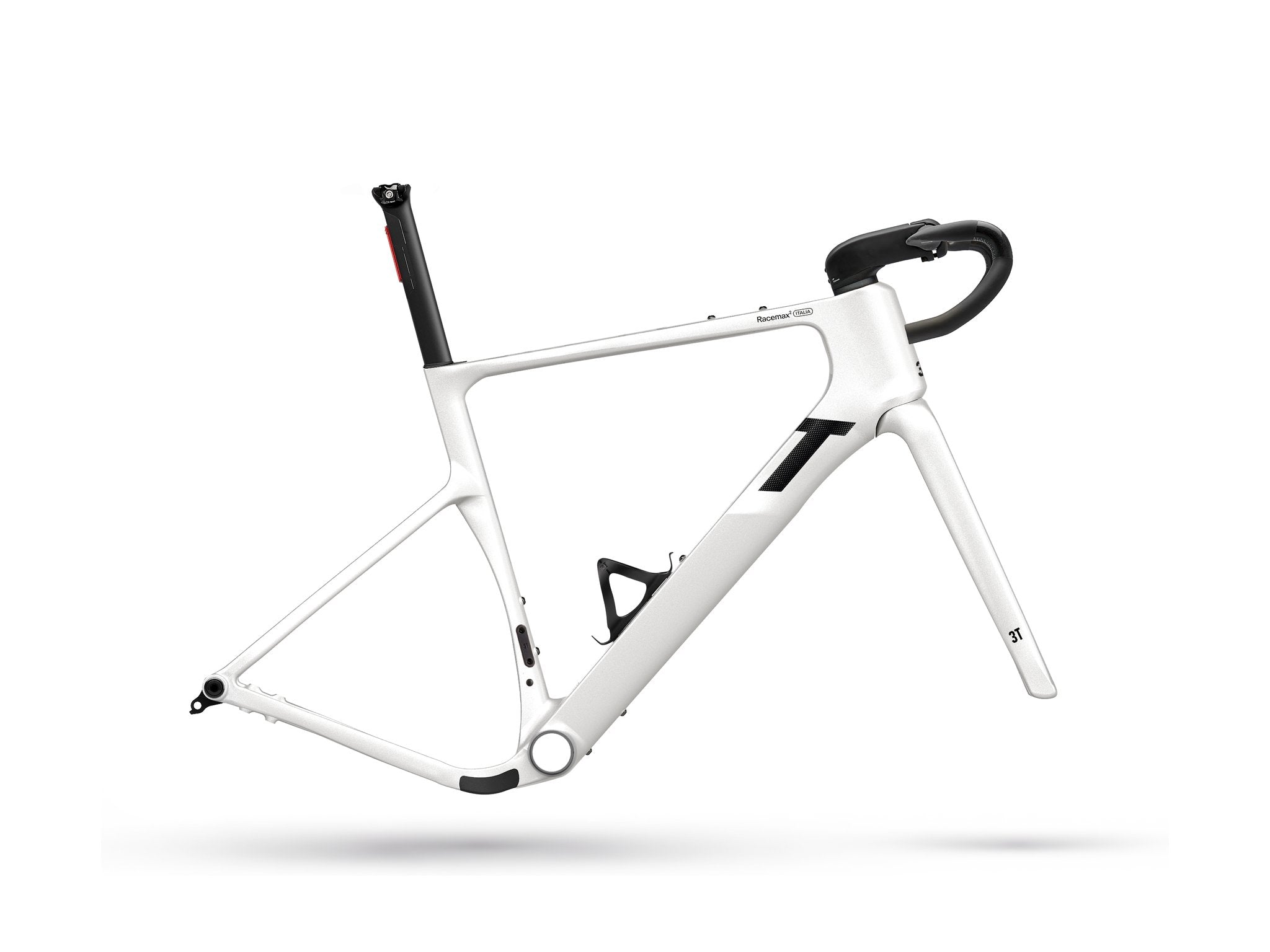

Colour - Perla White
Size

Free shipping on orders over 150$

About VAT & Duties

VAT and Duties included for EU orders

VAT and Duties not included for orders outside EU except for UK and CH

Split your payment with PayPal

Pay for your order in convenient monthly payments by choosing PayPal at checkout.

Pick Up Store

Pick up your fully assembled bike at your nearest store. Find authorized retail locations during checkout or in the shipping section.

Shipping and Payments

To ensure you receive the best possible delivery service, 3T works exclusively with top-tier international carriers. All our shipments are handled by the DHL Group.

Delivery times are approximately 5 business days from the date of shipment, with the exception of products in the “Custom” category: for these items, due to the unique handcrafted finishing process, delivery takes approximately 20 days from the date the order is received.

Discover More
Returns and Refunds

By browsing and purchasing on our website, you agree to our Terms & Conditions. Please review them for detailed information on your rights, order processing, payments, and returns.

Discover More
Find a dealer

Find the dealer nearest you. Search among authorized retailers worldwide and find the one closest to your location.

Contact us

Visit the Contact Us page to submit your request. Our team will respond as soon as possible.

Discover More
Notify me when available
Translation missing: en.contact.zoho.first_name
Translation missing: en.contact.zoho.last_name
Translation missing: en.contact.zoho.email
Translation missing: en.contact.zoho.phone
Translation missing: en.contact.zoho.subject
Translation missing: en.contact.zoho.description

Specifications

FRAME
Racemax2 ITALIA Integrale (UDH). Comes standard with integrated storage system. A version without storage is available on demand.
FRAME MATERIAL
3T Patented Carbon Filament Winding and Resin Transfer Molding
FORK
3T Fango Racemax2 Integrale w/ compact crown
HEADSET
Sealed cartridge 44/33 (36/45deg) - 52/42 (45/45deg)
THRU-AXLE
100×12 front - 142×12 rear (specific for 3T UDH dropout)
HANDLEBAR
3T Aeroghiaia Integrale LTD (S,M,L: 40 cm - XL: 42 cm)
BAR TAPE
3T Prendo Speed
STEM
3T More2 (K-Edge GPS mount included) - (S: 80 mm - M: 90 mm - L: 100 mm - XL: 110 mm)
BOTTLE CAGE
3T Carbon Front Load Water Bottle Cage
SEATPOST
3T Racemax/Racemax2 ITALIA seatpost for Ritchey clamp with integrated light system

Geometries

Size S M L XL
Rider Height* (cm) 157-171 168-180 176-186 183-195
Rider Height* (inches) 5'2"-5'7" 5'6"-5'11" 5'9"-6'1" 6'0" 6'5"
01. Stack 547 569 589 609
02. Reach 367 377 385 393
03. Headtube angle 70.5 71.5 71.5 71.5
04. Fork axle-crown 383 383 383 383
05. Headtube length 138 152 173 197
06. BB drop 79 79 79 76
07. Seattube angle 74 74 74 74
08. Seattube length 463 491 510 537
09. Toptube length 522 538 552 566
10. Front center 609 607 622 636
11. Rear center 420 420 420 420
12. Wheelbase 1017 1015 1029 1045

*Rider heights are approximations. For more accuracy, compare stack/reach with your current bike or visit your 3T retailer.

Swipe to see all sizes →

* Rider heights are approximations. For more accuracy, compare stack/reach with your current bike.

** Actual stack height is 15 mm higher due to Apto cable cover.
